RO Technology

RO is a water purification technology that uses a semi-permeable membrane to remove ions, molecules, and larger particles from drinking water. Unlike osmosis, which occurs naturally, reverse osmosis requires external pressure to work.

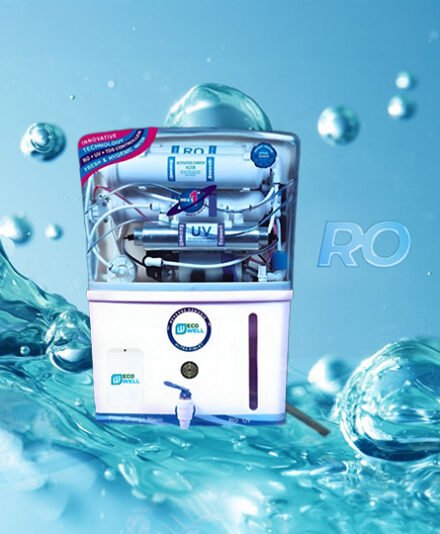

RO_5

Understanding Osmosis

Osmosis is a natural process where water moves from an area of low solute concentration (e.g., low salt concentration) to an area of high solute concentration (e.g., high salt concentration) through a semi-permeable membrane. This membrane allows the passage of water molecules but blocks larger molecules or solutes.

Key Points about Osmosis:

  1. Semi-permeable Membrane: A barrier that allows certain molecules (like water) to pass while blocking others (like salts or larger molecules).
  2. Concentration Gradient: Water moves from the side with lower solute concentration to the side with higher solute concentration.
  3. Equilibrium: Osmosis continues until the concentration of solutes is equal on both sides of the membrane.

REVERSE OSMOSIS (RO)

Reverse Osmosis (RO) is a water purification technology that uses a semi-permeable membrane to remove ions, molecules, and larger particles from drinking water. Unlike osmosis, which occurs naturally, reverse osmosis requires external pressure to work.

How Reverse Osmosis Works:

  1. Pressure Application: In reverse osmosis, pressure is applied to the side with the higher concentration of solutes. This pressure needs to be greater than the natural osmotic pressure to reverse the flow of water.
  2. Semi-permeable Membrane:  Similar to osmosis, RO uses a membrane that allows water molecules to pass but blocks the majority of dissolved salts, organics, bacteria, and pyrogens.
  3. Water Flow: Water is forced through the RO membrane, leaving contaminants behind. The clean water that passes through the membrane is called permeate, while the concentrated water containing the impurities is called brine or reject water.

Steps in Reverse Osmosis:

  1. Pre-filtration: Water is pre-filtered to remove larger particles and sediments that could clog the RO membrane.
  2. Pressurization: A pump applies pressure to the pre-filtered water, pushing it through the RO membrane.
  3. Membrane Filtration: Water molecules pass through the semi-permeable membrane, while contaminants are left behind.
  4. Post-filtration: The permeate may undergo additional filtration stages to further purify the water.

Applications of Reverse Osmosis:

  1. Drinking Water: RO systems are commonly used to purify drinking water by removing harmful contaminants.
  2. Industrial Processes: Used in various industries for processes requiring high-purity water.
    Desalination: Converts seawater into freshwater by removing salts and other impurities.
  3. Wastewater Treatment: Purifies wastewater for reuse or safe discharge into the environment.

Benefits of Reverse Osmosis

High Efficiency

Capable of removing a wide range of contaminants, including dissolved salts, bacteria, and organic material.

Improved Taste and Odor

Produces clean water that tastes and smells better.

Health Benefits

Provides safer drinking water by removing harmful substances.

Challenges and Considerations

Energy Consumption

RO systems require energy to generate the necessary pressure, which can be a consideration in large-scale applications.

Waste Water

The process produces a certain amount of brine or reject water, which needs to be managed.

Maintenance

 Regular maintenance and periodic replacement of the RO membrane are necessary to ensure optimal performance.

By understanding both osmosis and reverse osmosis, we can appreciate the sophistication of RO technology and its critical role in providing clean and safe water.
